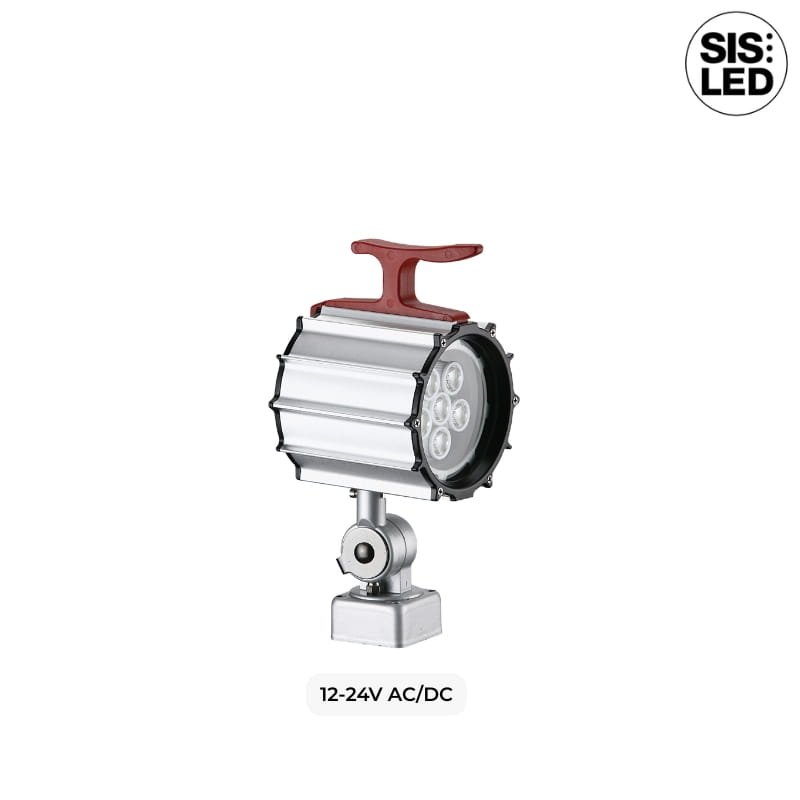

LED machine light M-LITE S
excl. VAT excl. Shipping costs
- Flexible articulated arm
- Energy efficient
- IP 65
Delivery time: 3 days
14 days at your own workplace - the bill only comes when you stay.
Questions before you buy? Talk to our team.
With us, you reach people who know the lights - no call center, no waiting queue. Consultation, lighting design and repair - all from one source.
your Light values
The values apply exactly to the version of this light fixture supplied.
1.260lm
Luminous fluxThe luminous flux (lumens, lm) indicates how much visible light the lamp emits in total - i.e., its overall brightness.
2W
OfferingPower consumption (watts) is the electricity consumption of the light during operation.
83CRI
Color renderingThe color rendering index (CRI/Ra) indicates how natural colors appear under light. Values above 90 are very good.
Color temperature daylight white (6000 Kelvin) · Protection class IP 65 · Lifespan 50.000 h
Product description
The LED machine light M-LITE S is the ideal solution for demanding work environments in industry, workshops, and mechanical engineering. Thanks to its high light output, it provides optimal illumination directly at the workplace. The robust housing with Degree of protection IP65 It guarantees dust and splash water protection, making the light reliable even under harsh conditions. Its flexible articulated arm allows for individual adjustment of the light direction – perfect for machines, workbenches, or production lines. The energy-efficient LED technology ensures not only excellent brightness but also a long lifespan with minimal energy consumption.
Light values
- Luminous fluxThe luminous flux (lumens, lm) indicates how much visible light the lamp emits in total - i.e., its overall brightness.
- 1260 lumens
- Color temperatureThe color temperature (Kelvin) describes the color of the light: low values are warm white, high values are daylight white.
- daylight white (6000 Kelvin)
- Color renderingThe color rendering index (CRI/Ra) indicates how natural colors appear under light. Values above 90 are very good.
- CRI > 80 (typ.83)
- OfferingPower consumption (watts) is the electricity consumption of the light during operation.
- 6 2 x W
Product details
- lamp head length
- Ø 90 x 100 mm
- Weight in kg
- 2,6 kg1,7 kg
- Color
- silver gray RAL9006
- Material housing
- Joint and transformer housing made of die-cast aluminum, handle made of impact-resistant plastic (GFK)
- LED cover
- Lamp cover made of tempered safety glass
- arm's length
- 65 mm
Technical details
- LED modules
- LED module 6 x 2 W lenses 25°
- Joint type
- short friction joint arm
- Connection voltage
- 100-240V / 50-60Hz24 V AC / DC
- LifespanThe lifespan (e.g. L80/B10) indicates how long the LED reliably provides light before the brightness noticeably decreases.
- 50.000 h
- Protection classThe protection rating (IP code) indicates how well the light fixture is protected against dust and moisture.
- IP 65
Operation and installation
- DimmingIndicates whether and how the brightness of the light can be adjusted.
- not dimmable
- Switch
- On/Off switch on the lamp head
- Connection

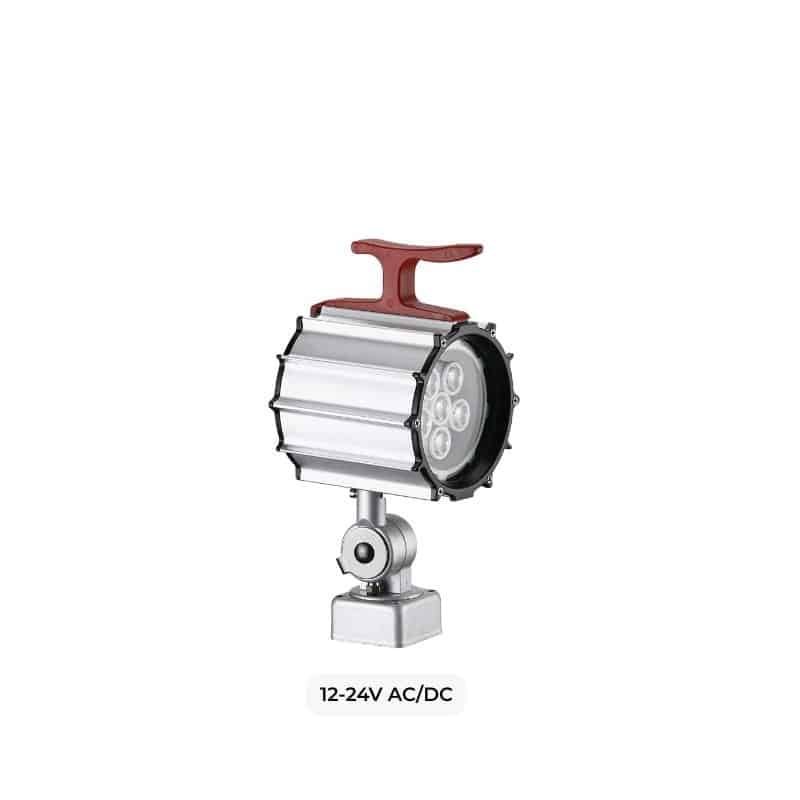

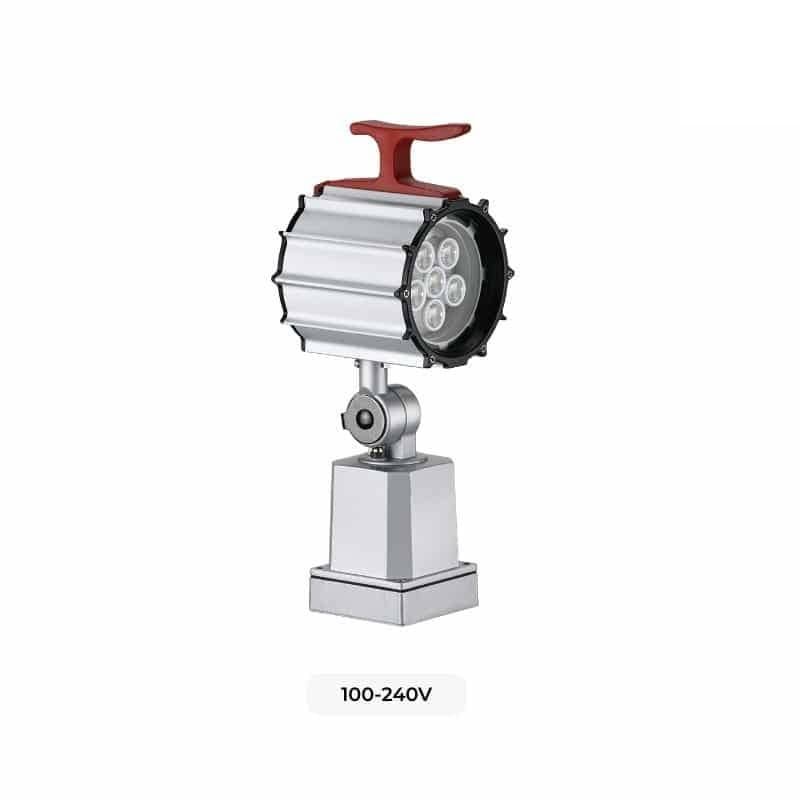

- Schuko (CEE 7/7) (100-240 V/50-60Hz)via terminal blocks in the base (24 V AC/DC)
- Attachments

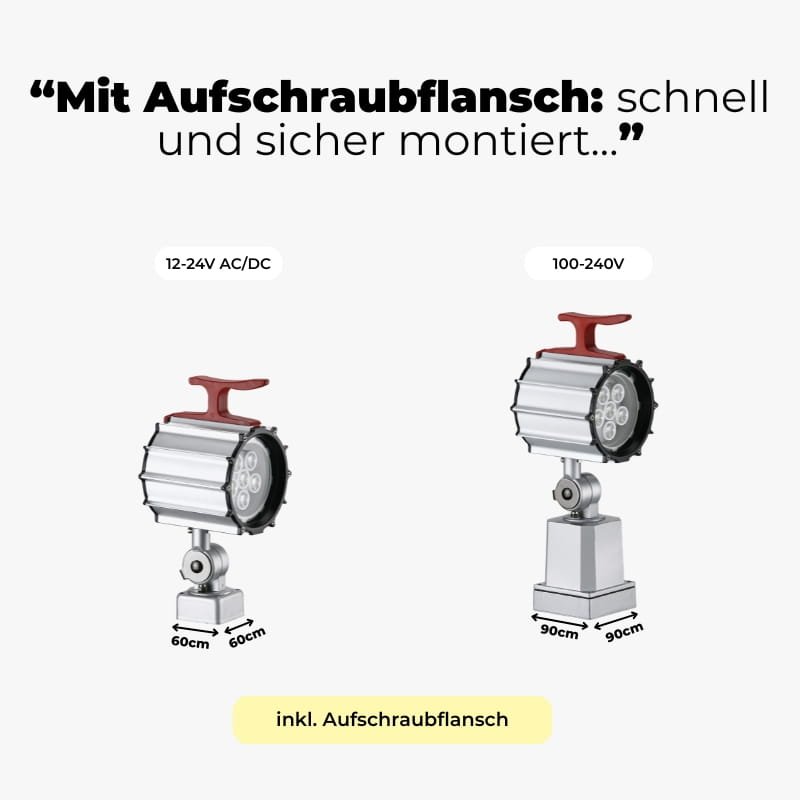

- screw-on flangeMagnetic base blackTable clampwall angle
- Delivery
- Incl. screw-on flange, LED bulb
Product download
Machine lights for precise work
Our machine lights provide precise and uniform illumination. With high color rendering (CRI > 80) and focused LED light, even the smallest contours become visible – ideal for precise work in industry.
Energy efficient & robust
Thanks to state-of-the-art LED technology, the machine lights combine high light output with minimal energy consumption. Robust housings, tempered glass, and protection ratings up to IP 65 make them resistant to dust, water, chips, and vibrations.
Maximum flexibility in material selection
Our machine lights with articulated arms can be flexibly adjusted and precisely positioned. Whether mounted on the machine housing, with a screw-on flange, or a table clamp – the light reliably reaches exactly where it's needed in industry.
What you will receive from us
Not just a light in a box.
Free lighting design
We plan workplaces and rooms according to DIN EN 12464-1 - including individual workplaces.
Personal specialist advice
You will speak directly with a contact person who knows our lights and understands your application.
Proven Quality
Tested for workmanship, light quality and durability - many products are manufactured in-house.
Service beyond the purchase
We offer spare parts and repair service for many models - even after purchase.
Frequently asked questions
You can find detailed answers in our FAQ and in the datasheets.
Where are machine lights used in industry?
Machine lights are used in CNC machines, turning, milling, and grinding systems. They provide precise illumination directly on the workpiece – even under difficult industrial conditions.
Why is glare-free and flicker-free light so important?
Glare and flickering lead to rapid fatigue, loss of concentration, and errors. Our lights are glare- and flicker-free, providing homogeneous, eye-friendly light – ideal for long shifts and precise work.
Are machine lights robust enough for harsh environments?
Yes, our machine lights are dustproof, splashproof (IP65), and resistant to vibrations, chips, and coolants. Ideal for continuous industrial use.
What mounting options are available for machine lights?
Depending on the model, our machine lights can be screwed directly onto the wall or attached with a magnetic base, wall bracket, or table clamp. This means that various mounting options are available for each model – for maximum installation flexibility.
How do I properly care for my machine light?
A soft, dry or slightly damp cloth is sufficient for maintenance. Avoid aggressive cleaning agents to avoid damaging the surface.
How long-lasting are your lights?
Featuring a robust die-cast aluminum housing and sturdy joints, our machine lights are designed for tough, continuous use in industry and workshops. They are low-maintenance, durable, and reliably stay in place even after intensive use.
Are the workplace lights repairable?
100% in-house manufacturing and a sophisticated design make our machine lights particularly durable. They can be repaired even after years of use.
