ESD magnifying lamp RLL Pro
excl. VAT excl. Shipping costs
- ESD compliant
- High color rendering index
- Dimmable in 3 levels
Delivery time: Ready to ship in 1-2 weeks
14 days at your own workplace - the bill only comes when you stay.
Questions before you buy? Talk to our team.
With us, you reach people who know the lights - no call center, no waiting queue. Consultation, lighting design and repair - all from one source.
your Light values
The values apply exactly to the version of this light fixture supplied.
900lm
Luminous fluxThe luminous flux (lumens, lm) indicates how much visible light the lamp emits in total - i.e., its overall brightness.
7.900Luxury
Illuminance (15cm)Illuminance (lux) indicates how much light reaches the work surface – measured at the specified distance. The higher the value, the brighter the workspace.
8W
OfferingPower consumption (watts) is the electricity consumption of the light during operation.
93CRI
Color renderingThe color rendering index (CRI/Ra) indicates how natural colors appear under light. Values above 90 are very good.
Color temperature neutral white (5000 Kelvin) · Protection class IP 20 · Lifespan 50.000 h
Product description

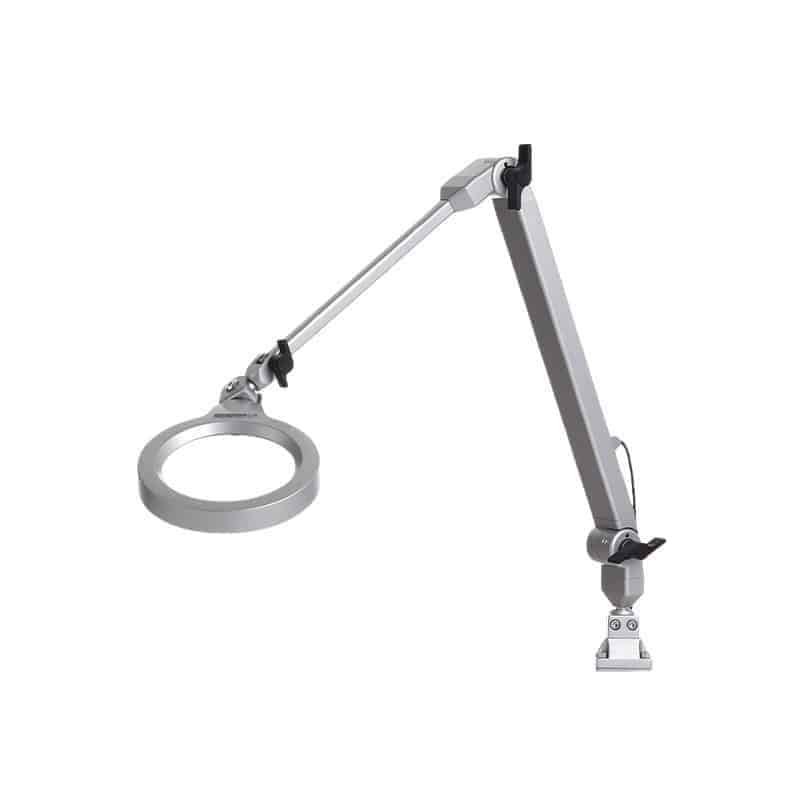

The RLL Pro ESD magnifying lamp was specially developed for the electronics industry and provides reliable protection against electrostatic discharge – ideal for assembly, quality control, and laboratory use. Thanks to powerful LEDs and a 360° ring light, it offers uniform, shadow-free illumination. The glass lens, available in 3 or 5 diopters, ensures distortion-free magnification, while the robust 3D articulated arm allows for precise and ergonomic positioning. The three-stage stepDIM function enables quick adjustment of the light intensity. Compared to standard solutions, the RLL Pro ESD magnifying lamp impresses with its high color rendering (CRI > 90), stable construction, and practical operation for efficient, eye-friendly work in ESD-protected workspaces.
Light values
- Luminous fluxThe luminous flux (lumens, lm) indicates how much visible light the lamp emits in total - i.e., its overall brightness.
- 900 lumens
- Color temperatureThe color temperature (Kelvin) describes the color of the light: low values are warm white, high values are daylight white.
- neutral white (5000 Kelvin)
- Color renderingThe color rendering index (CRI/Ra) indicates how natural colors appear under light. Values above 90 are very good.
- CRI > 90 (typ.93)
- OfferingPower consumption (watts) is the electricity consumption of the light during operation.
- 8 W
- Illuminance (15cm)Illuminance (lux) indicates how much light reaches the work surface – measured at the specified distance. The higher the value, the brighter the workspace.
- 7900 Lux
Product details
- LED cover
- conductive coated LED coverESD protective cover for lamp head
- Diameter glass lens (Ø)
- 120 mm
- material lens
- biconvex ground glass magnifying glass, double-sided
- articulated arm lengths
- 380mm upper arm + 415mm lower arm
- Weight in kg
- 4 kg
- Color
- silver gray RAL9006
- lens cover
- ESD protective cover made of fabric as lens cover
Technical details
- lens magnification
- 3 diopters (1,75x magnification)5 diopters (2,25x magnification)
- Joint type
- friction articulated arm
- Protection classThe protection rating (IP code) indicates how well the light fixture is protected against dust and moisture.
- IP 20
- LifespanThe lifespan (e.g. L80/B10) indicates how long the LED reliably provides light before the brightness noticeably decreases.
- 50.000 h
- Connection voltage
- 100 - 240 V / 50 - 60 Hz
- plug type
- Euro plug (CEE 7/16)
Operation and installation
- Connection
- 2,0 m PVC cable with detachable power supply unit (Europlug)
- Switch
- multifunction button in the lamp head (ON/OFF/dimming)
- Delivery
- incl. screw-on flange, incl. LED bulb, incl. lens cover
- Attachments
- screw-on flangeTable clampwall angle
- DimmingIndicates whether and how the brightness of the light can be adjusted.
- stepDIM 30-80-100%
Product download
Maximum precision & depth of field
Various magnification levels allow you to master even tricky tasks and see every tiny detail without straining your eyes. High-quality real glass lenses with a wide viewing area ensure an undistorted image with exceptional depth of field – all without constantly readjusting the light. Ideal for precise detail work and inspections.
Efficient & Ergonomic
Efficient light meets maximum user comfort. State-of-the-art LED modules are particularly energy-efficient and can be dimmed according to personal preferences. The proximity to the object can also be individually adjusted thanks to flexible articulated arm technology.
Perfect working conditions for precision work
Hands-free work – magnification of objects and sufficient light with just one product. Even after extended periods, you can remain focused on intricate details that would be difficult to discern with the naked eye.
What you will receive from us
Not just a light in a box.
Free lighting design
We plan workplaces and rooms according to DIN EN 12464-1 - including individual workplaces.
Personal specialist advice
You will speak directly with a contact person who knows our lights and understands your application.
Proven Quality
Tested for workmanship, light quality and durability - many products are manufactured in-house.
Service beyond the purchase
We offer spare parts and repair service for many models - even after purchase.
Frequently asked questions
You can find detailed answers in our FAQ and in the datasheets.
At what distance from the object should I use the magnifying lamp?
The optimal working distance between the lens and the object is with magnifying lamps 3 diopter magnification at approximately 30 cm. With magnifying lamps with 5 diopter magnification We recommend that our customers maintain a working distance from the object of about 18 cm, in order to be able to see the smallest details in the cutout.
Thanks to our particularly robust and at the same time easily adjustable flex or friction joint arms, our magnifying lamps offer a large range of motion and can be individually positioned according to the visual task.
What magnification factor do I need for my work?
The higher the positive number of diopters, the higher the magnification factor of the lens.
| Diopters | magnification factor | working distance |
|---|---|---|
| 3 | 1,75 times | about 30 cm |
| 4 | 2,0 times | about 24 cm |
| 5 | 2,25 times | about 18 cm |
| 6 | 2,5 times | about 15 cm |
However, the higher the magnification factor of the lens, the shorter the focal length, meaning the optimal working distance to the object becomes smaller and consequently so does the field of view.
Our experience and customer feedback have shown that in most applications, a magnification of 3 or 5 diopters offers the greatest working comfort. Magnifying lamps with a magnification factor of 3 diopters are sufficient and versatile for most common tasks in workshops, as reading aids, in dental sterilization rooms, or in dental practices. They provide a wide field of view, high depth of field, and an undistorted image across the entire lens.
However, those who want to work on very small details should opt for a light with 5 diopters. With a magnification of 225%, even the finest objects become clearly visible, but the field of view is also reduced.
What material is the lens made of?
In our magnifying lamps, we exclusively use biconvex ground glass lenses of optician quality, i.e., no optically inferior pressed glass or scratch-sensitive plastic lenses.
How do I attach the magnifying lamp?
Depending on your needs, there are a variety of mounting options for your RMD work light. These include: screw-on flange, table clamp, wall mount, and table base. See for yourself and browse the "Accessories" tab to find the right mounting option for you and your model.
How can I clean my magnifying lamp?
Our magnifying lamps made of anodized aluminum are generally very low-maintenance, even with daily use. However, over time, the lamp housing may become faded due to dust and dirt – the lamp will need cleaning. You can find out the best way to do this in our short article: Care and Cleaning Tips for LED Lamps.
If the LED modules are defective, can they be replaced, or does the entire light fixture have to be disposed of?
The LED modules of our magnifying lamps can be replaced at low cost. Simply contact us and we will take care of your concerns as quickly as possible.
